High-precision air pressure control system
Multi-nozzle printing
Multifunctional platform

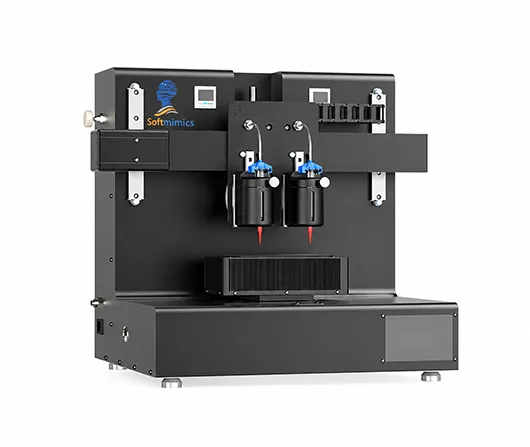

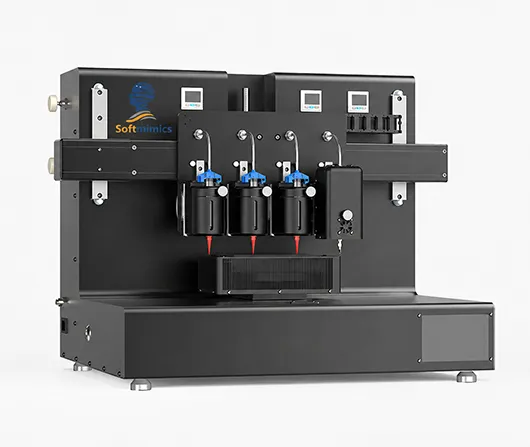

Arnold2 is a professional-grade, dual-nozzle desktop bioprinter. By coordinating its two printhead modules, it easily enables the printing of various hydrogels and cells, polymer-based biological scaffolds, and dual-material structures. Arnold4 is a flagship, multifunctional bioprinter featuring four printheads.
By combining printhead modules with diverse functions, it supports the 3D printing of the vast majority of biomaterials used in laboratory settings.
1. Pre-plan printing paths to reduce the risk of print failure.
2. Multi-channel nozzle module supporting multi-material fabrication.
3. Staggered nozzle system that actively avoids the printed structure.
Customizable Functional Modules.
We offer a range of functional modules tailored to customer requirements, including multiple nozzle options, a custom -20°C ultra-low temperature platform, a multi-well plate mounting platform, and a rotary axis platform.
Specification | Details |
Dimensions (LWH) | 558mm * 455mm * 418mm |
XYZ Repeatability | ±0.02mm |
Number of Nozzles | 4-Nozzle system with independent Z-axis lifting |
Max Build Volume | 90mm * 50mm * 60mm |
Max Motion Speed | > 50mm/s |
Max Air Supply | 1.0 MPa |
Pressure Range | 0.01 ~ 0.8 MPa |
Pressure Control | Manual knob + Digital display |
Needle Inner Diameter | 0.2mm, 0.25mm, 0.41mm |
Operation Mode | 4-inch color touchscreen + Offline printing |
Slicing Software | Open-source process parameters & Print simulation |
1. Tissue Engineering.
Biological scaffold and cell printing, dual-material printing.
2. Novel Material R&D.
Polymer biological scaffold printing, coaxial printing, suspension printing, electrohydrodynamic (EHD) printing, multi-material printing, rotary printing.
3. Hydrogel Printing.
Thermo-responsive hydrogel and cell printing, photo-responsive hydrogel and cell printing.
